Pressure: Class150-Class900,PN16-160, 10K-60K

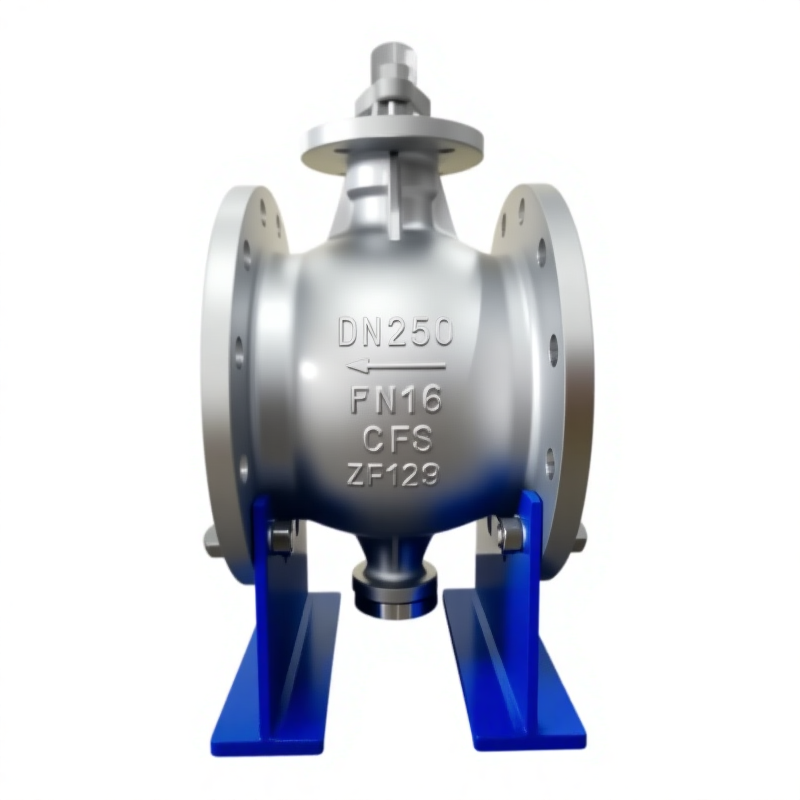

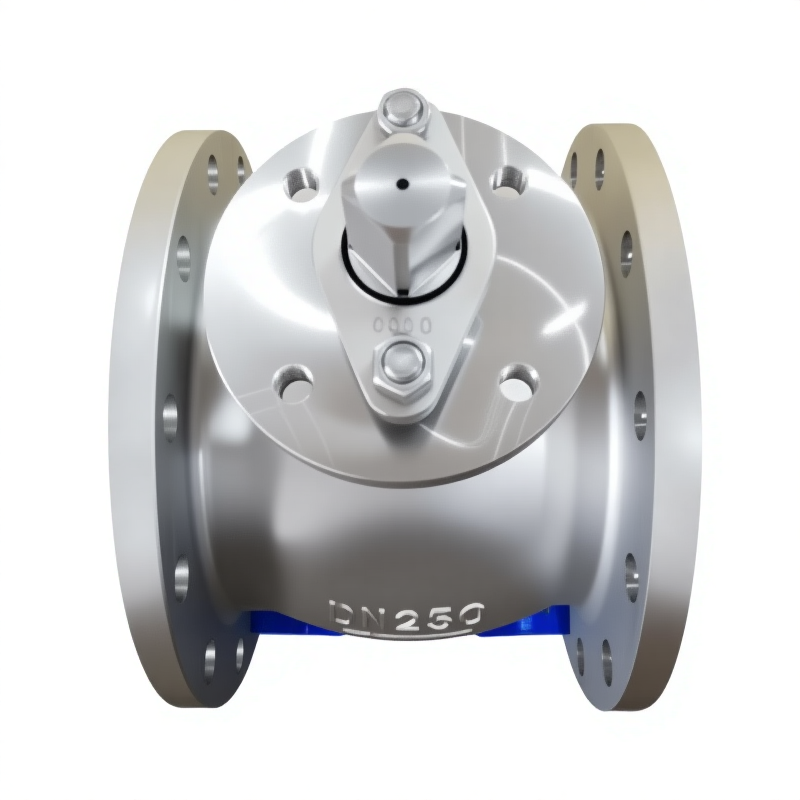

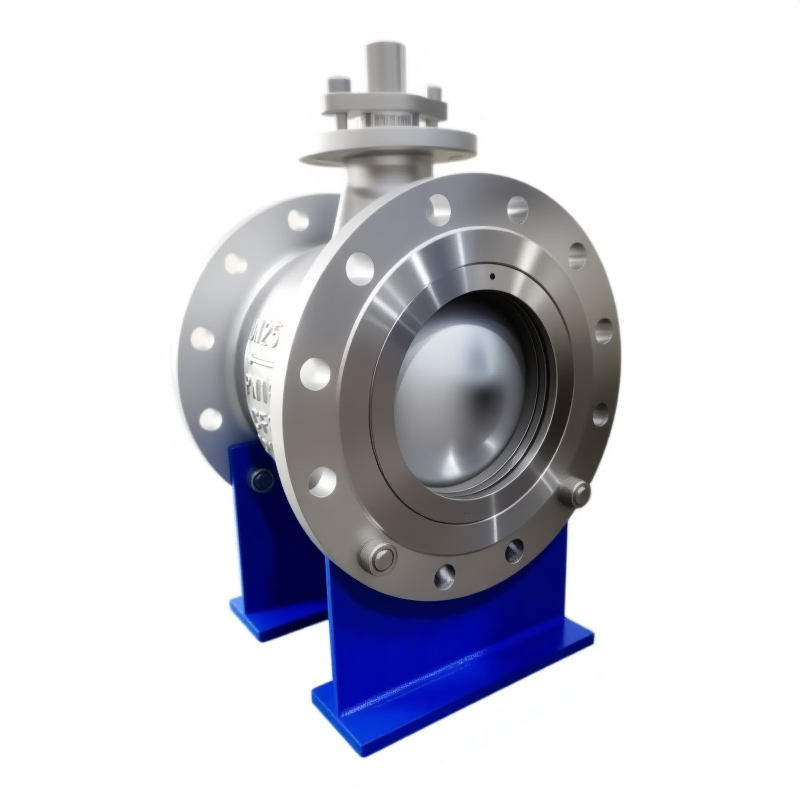

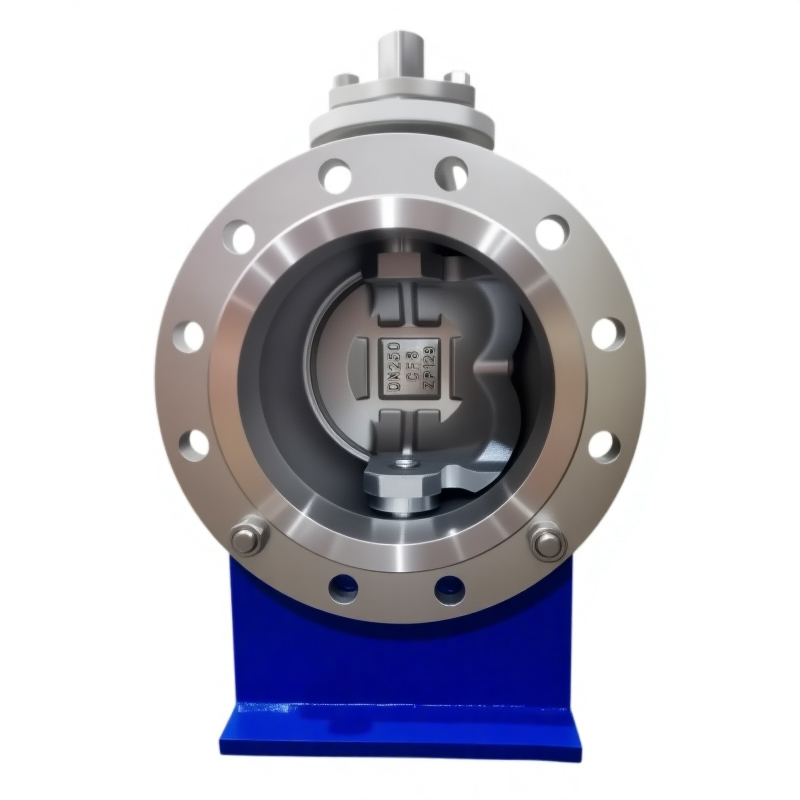

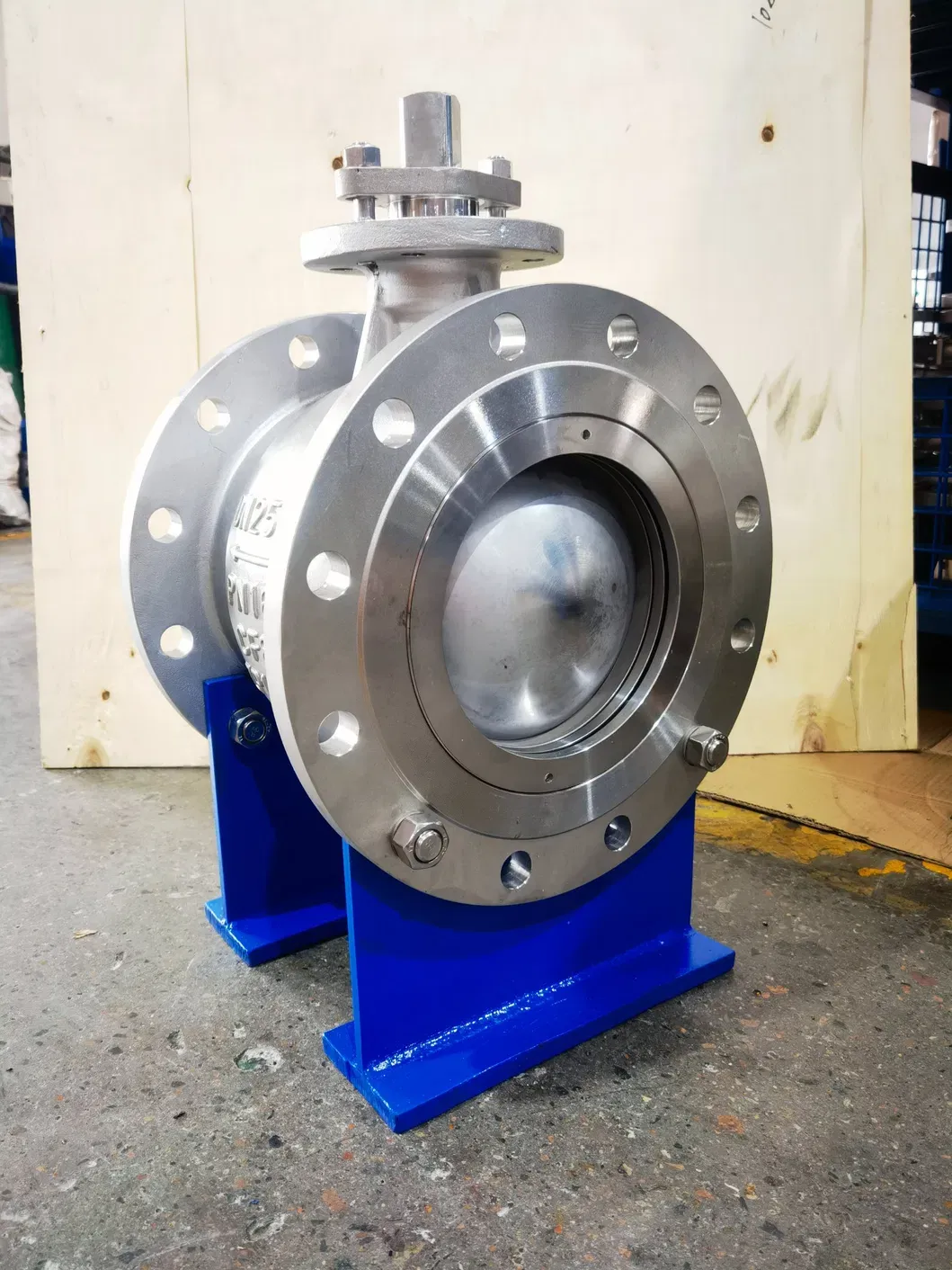

| Model NO. | QV47H DN250 | Connection Form | Flange |
| Driving Mode | Manual | Nominal Pressure | PN1.0-32.0MPa |
| Channel | Straight Through Type | Structure | Fixed Ball Valve |
| Type | Fixed Ball Valve | Function | Blow-Down Valve, Relief Valve, Atmospheric Valve |
| Temperature | Normal Temperature | Standard | ASME B16.34 |
| Application | Industrial Usage, Water Industrial Usage | Delivery Time | 7-30day |
| Transport Package | Polywood Case | Specification | 60.00cm * 50.00cm * 50.00cm |
SIZE: 2"-48"
Pressure: Class150-Class900,PN16-160, 10K-60K
Material: A351CF8M/CF8/CF3/CF3M,A216WCB,A105,A352LCB/LCC,F304,F316,F51/F53,F11,C3,C5,WC6,WC9,2205,TAI2
Suitable Temperature: -196ºC~450ºC( Different temperature choose different materials)
Suitable Medium: Water, Steam, Oil and natural gas etc
Technical Specification
Standard Compliance: API 600, BS 1414
Pressure-Temp. Rating: ANSI B16.34
Face to Face: ANSI B16.10
End Flange: ANSI B16.5 (2"~24"), ASME B16.47 (26" Over)
Butt Welding Ends: ANSI B16.25
Manufacturing to NACE MR-01-75 (On Request)
Inspection and Test: Tested to API 598, BS 6755, Certified to EN10204 3.1B
Size: 2"~24"( ANSI B16.5) , 26" over ( ASME B16.47)
Working Pressure: 150LB
Suitable Medium: Oil, Nature Gas, Water, Steam;Acid, Alkali, Organic Compounds
